| INVERTER IGBT | |||
| Digital control technology enhances performance | |||
| Automatic parameters saving | |||
| Excellent performance with Pulse TIG, especially for thin material welding. | |||
| Stable arc with less spatter and good shaping | |||
| Remote control | |||

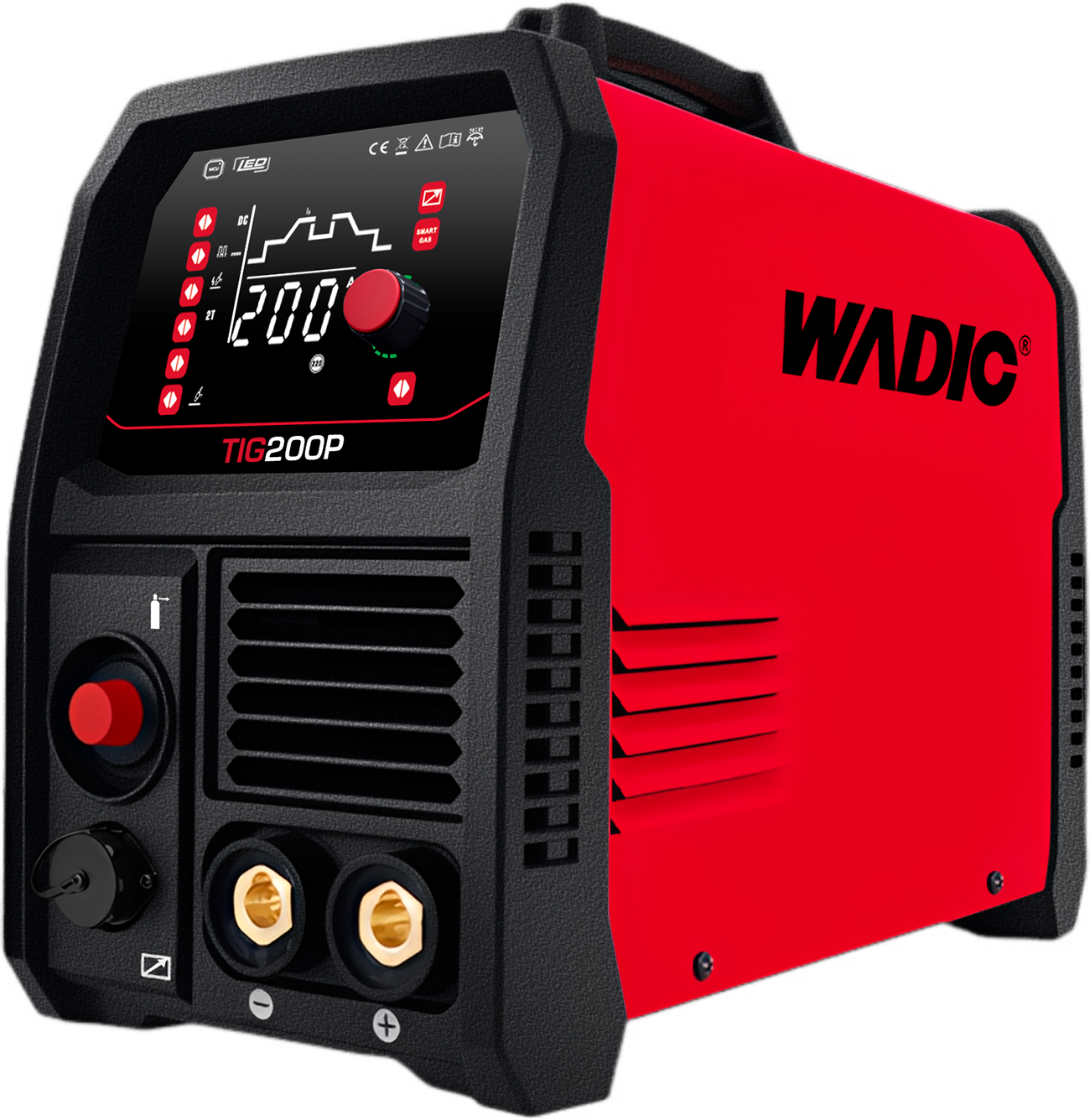

| Model | TIG200P | TIG200S | |
| Input | Input voltage(V) | 1~220V±15% | 1~220V±15% |
| Rated input power(KVA) | 7.8 | 7.8 | |
| Power factor | 0.77 | 0.74 | |
| Output | No load voltage(V) | 72 | 62 |
| Current range（A) | 10-200 | 10-200 | |
| TIG | pulse frequency（HZ） | 0.5-200 | |
| duty ratio | 10-90% | ||
| Pre-gas time（S) | 0-5 | 0-5 | |
| Post-gas time（S) | 0-10 | 0-10 | |
| Up-slope time（S) | 0-10 | ||
| Down-slope time（S) | 0-10 | ||
| Arcing Way | HF | HF | |
| MMA | Current range（A) | 10-160 | 10-160 |
| Thrust current（A) | 0-60 | 0-60 | |
| Thermal arc current（A) | 0-60 | 0-60 | |
| Else | Rated duty cycle @ 40ºC | 35% | 35% |
| Efficiency | 80% | 78% | |
| Protection class | IP21S | IP21S | |
| Insulation class | F | F | |
| Dimensions LxWxH（mm) | |||
| Weight(kg) | |||
