| INVERTER IGBT | |||
| Digital control technology enhances performance | |||
| Automatic parameters saving | |||
| Excellent performance with Pulse TIG, especially for thin material welding. | |||
| Stable arc with less spatter and good shaping | |||
| Remote control | |||

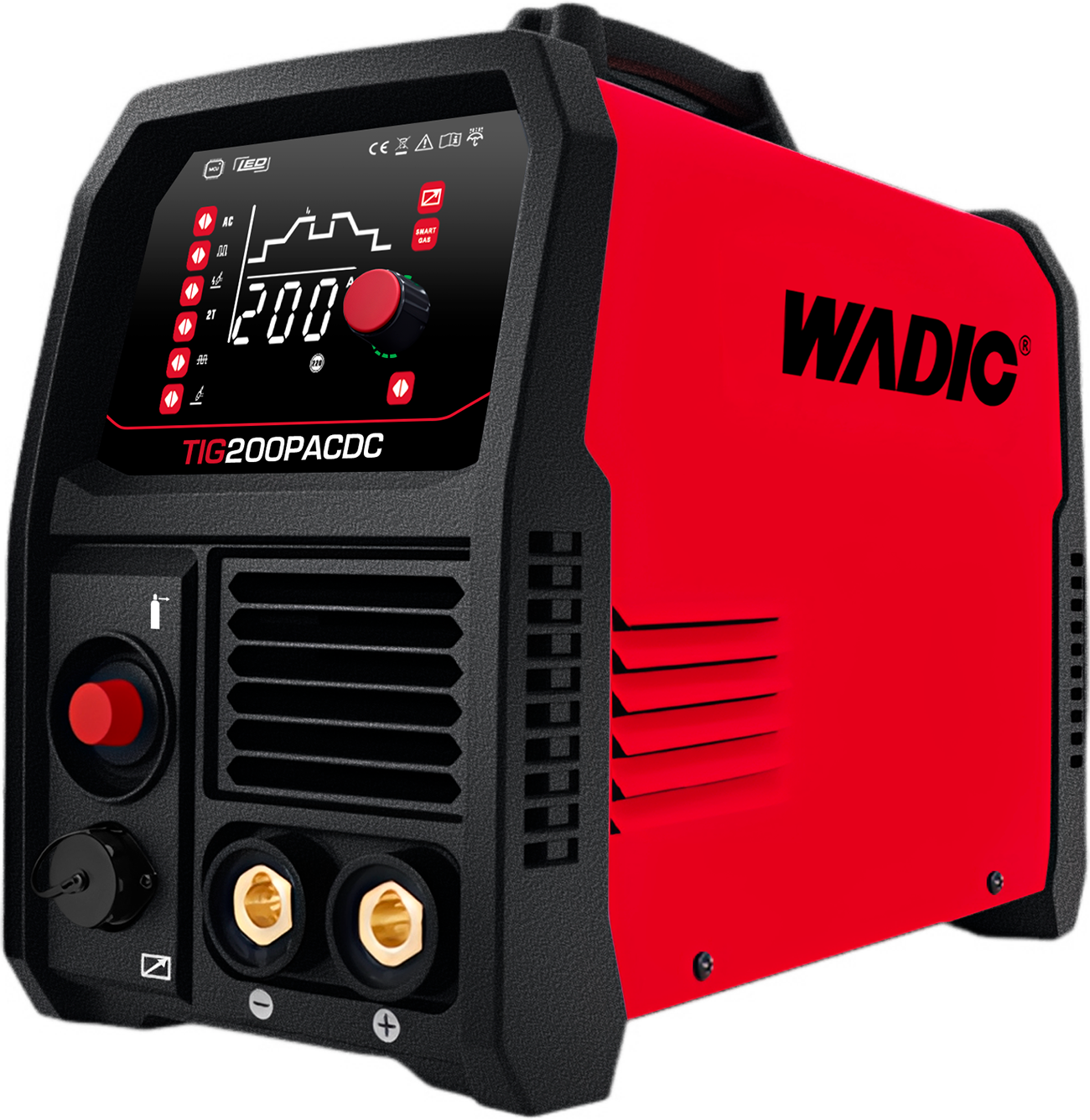

| Model | TIG200PACDC | |
| Input | Input voltage(V) | 1~220V±15% |
| Rated input power(KVA) | 6 | |
| Power factor | 0.73 | |
| Output | No load voltage(V) | 60 |
| Current range（A) | 10-200 | |
| TIG | AC frequency（HZ） | 20-250 |
| pulse frequency（HZ） | 0.5-200 | |
| duty ratio | 10-90% | |
| Pre-gas time（S) | 0-5 | |
| Post-gas time（S) | 0-10 | |
| Up-slope time（S) | 0-10 | |
| Down-slope time（S) | 0-10 | |
| Arcing Way | High frequency arc ignition | |
| MMA | Current range（A) | 10-160 |
| Thrust current（A) | 0-60 | |
| Thermal arc current（A) | 0-60 | |
| Else | Rated duty cycle @ 40ºC | 25% |
| Efficiency | 80% | |
| Protection class | IP21S | |
| Insulation class | F | |
| Dimensions LxWxH（mm) | 428*193*344 | |
| Weight(kg) | 16 | |
| Accessories | argon arc welding gun*1 ground wire clamps*1 tungsten needle*1 quick plug*1 hexagon wrench*1 |
|
